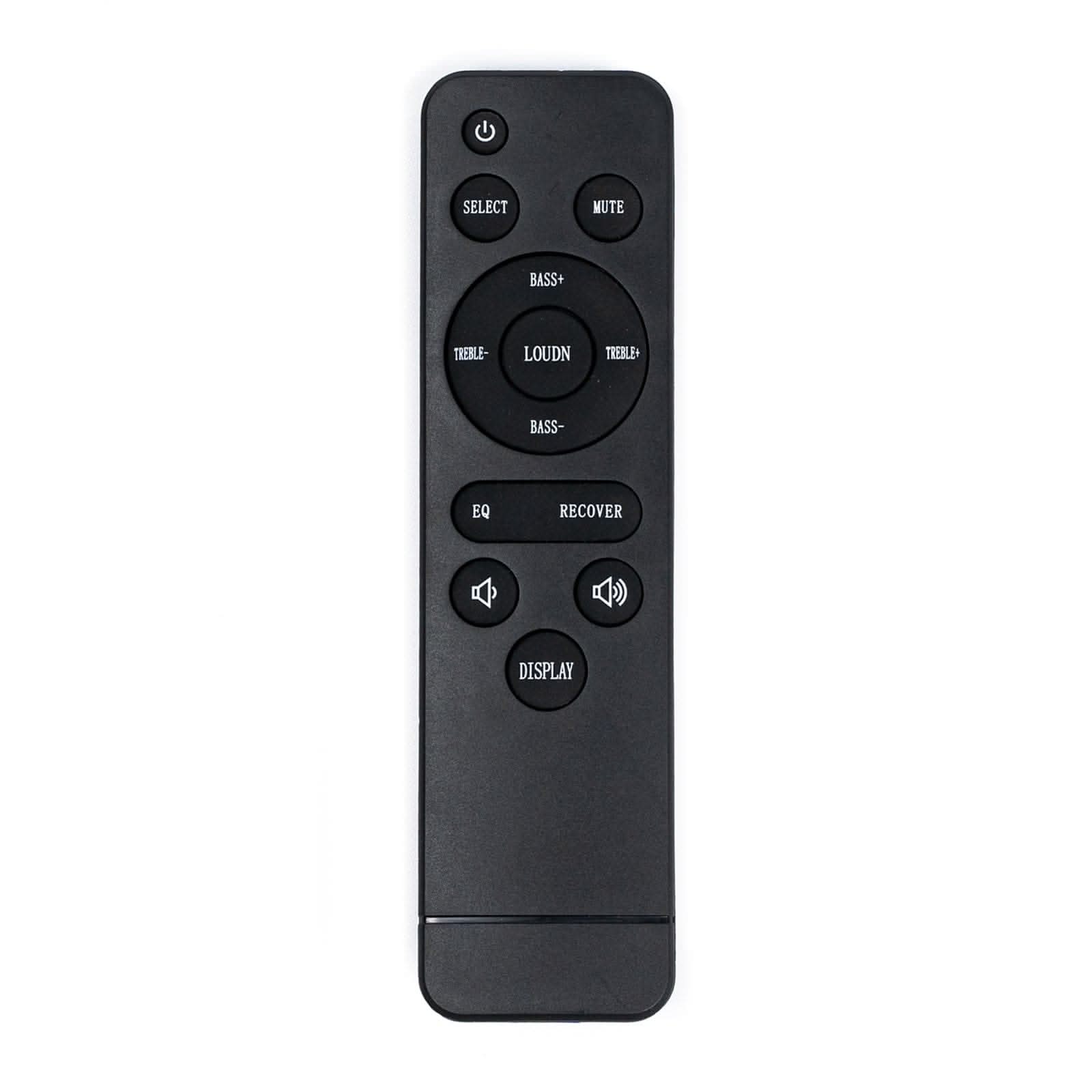

Fosi Audio Remote Control For DA2120A/C Bluetooth Dac Amp

Lower Noise. Blacker Background.

Unlike switching power supplies, the PSU20 produces a simpler, more controllable noise spectrum. Combining premium Nippon Chemi-Con capacitors with a Texas Instruments quad-core linear regulation design, it reduces ripple noise and delivers a cleaner background for high-fidelity audio systems.

Power Three Devices Simultaneously

With dual DC outputs and a USB-A output, the PSU20 can power your entire audio system from a single source. Included DC-to-DC cables eliminate bulky power adapters and messy wiring, simplifying your setup and reducing cable clutter.

Fully Isolated Outputs

Each output features its own dedicated rectification, filtering, regulation, and protection circuitry, ensuring clean, stable power delivery without interference between connected devices.

Simplify Connection

Simplify your power adapter in one step, easier and neater cable management.

Perfect Match for Fosi Gear

Purpose-built for Fosi Audio components, the PSU20 offers seamless compatibility and a unified design that fits naturally into your system.

Smart Cooling. Ultra Quiet.

A custom low-noise cooling fan automatically activates at 55°C, operating at just 30dB. Efficient thermal management keeps the PSU20 running cool and stable during extended listening sessions.

Multiple Protections

Supports over-temperature, over-voltage, and over-current protection to safeguard your connected audio equipment and ensure reliable system operation.

80W Toroidal Transformer

Custom pure copper toroidal transformer with up to 100W peak output ensures stable power delivery, even with three devices connected.

Nippon Chemi-Con Capacitors

Premium capacitors help minimize ripple and noise, with ripple as low as 0.1mV.

High-Reliability Rectifier

A GBU806 rectifier bridge rated at 600V/8A ensures fast, stable AC-to-DC power conversion.

4-Core Regulation

Powered by three LM1085IT and one ST78M05 linear regulators from Texas Instruments.

Product details

Description

Before Purchasing:
Please check your old remote (DA2120C or DA2120A). If the power button is red, this means it is the old version, and it does not match the current black button version.
Only the black power button version is available now.

If you don’t see your remote model in the product options, please select other remote and write a note with the model you need when you place the order.

Specifications

Power Input
AC: 115V / 230V
Note:
115V setting supports 100–120V input
230V setting supports 220–240V input
Power Output
DC 1: 12V / 15V (Rated Power: 20W)
DC 2: 12V / 5V (Rated Power: 15W)
USB: 5V / 1A (Rated Power: 5W)
Operating Temperature
-20 ~ 40°C (-4°F ~ 104°F)
Temperature Rise Test
Temperature rise of 25°C (77°F) at full load

What‘s in the box？

Fosi Audio PSU20*1
1.2m (47.2 in) DC-DC Power Cable*1
0.3m (11.8 in) DC-DC Power Cable*1
User Manual*1
AC Power Cord*1
