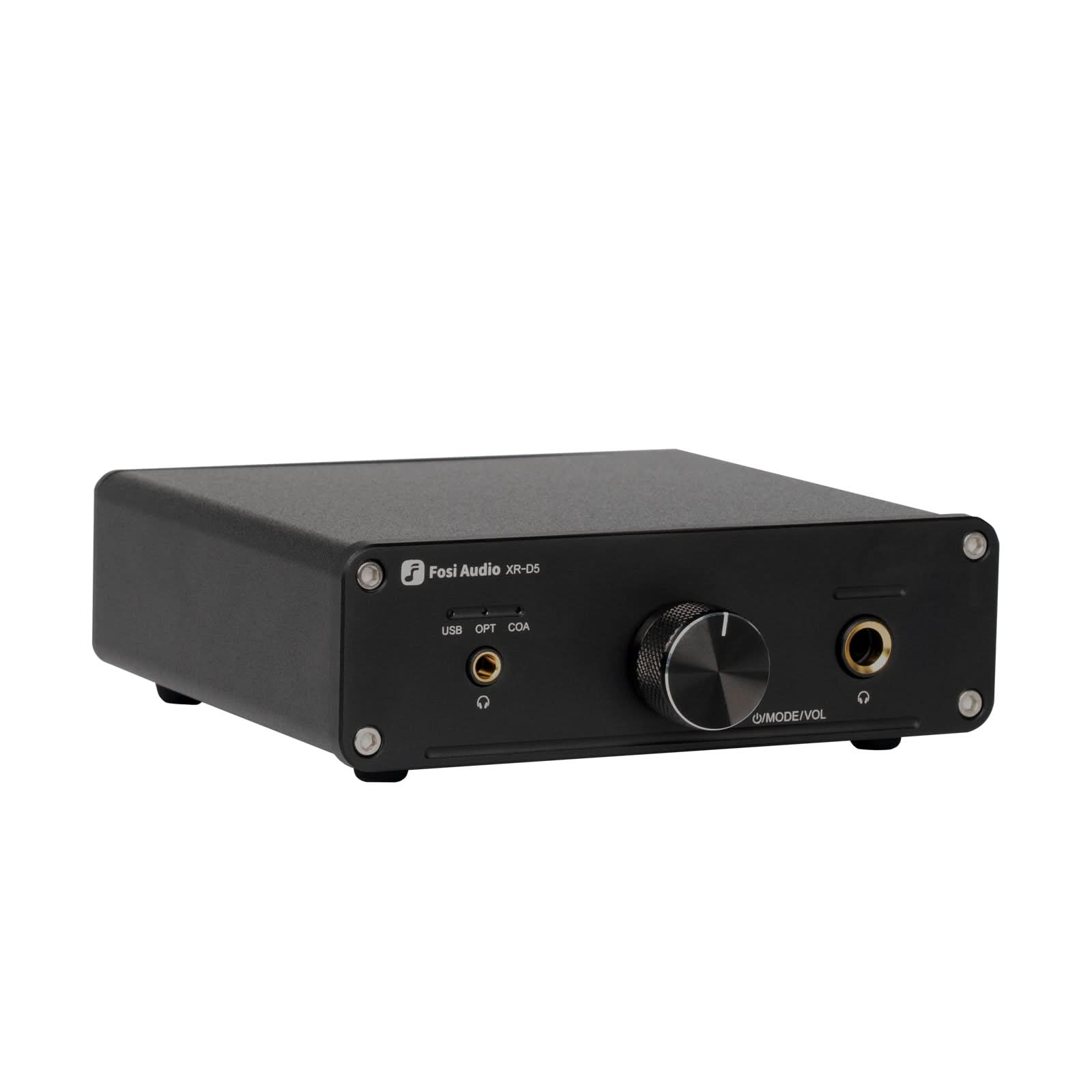

Fosi Audio XR-D5 DAC Headphone Amplifier
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We offer free worldwide shipping, except for certain regions such as Ukraine and Russia, where our services are currently unavailable.
-
Customer Support
WhatsApp: +8613716612254
support@fosiaudio.com
Mon-Fri: 3:00 AM - 3:00 PM PST -
FAQ’s
If you have any questions, please refer here: FAQs
80W Toroidal Transformer
Custom pure copper toroidal transformer with up to 100W peak output ensures stable power delivery, even with three devices connected.
Nippon Chemi-Con Capacitors
Premium capacitors help minimize ripple and noise, with ripple as low as 0.1mV.
High-Reliability Rectifier
A GBU806 rectifier bridge rated at 600V/8A ensures fast, stable AC-to-DC power conversion.
4-Core Regulation
Powered by three LM1085IT and one ST78M05 linear regulators from Texas Instruments.
Product details
Description
-
Excellent sound quality and compatibility: Equipped with ES9018K2M chip, it provides excellent dynamic response and high resolution, ensuring clear and pure sound quality and adapting to a variety of audio devices.
-
Powerful Driver: Provides stable power for 16-300Ω headphones, 360mW@32Ω, meets the needs of all kinds of headphones, and delivers excellent audio performance.
-
Compact Design and Powerful Performance: The XR-D5 mini desktop decoding earphone is compact and powerful, ideal for desktop audio systems.
-

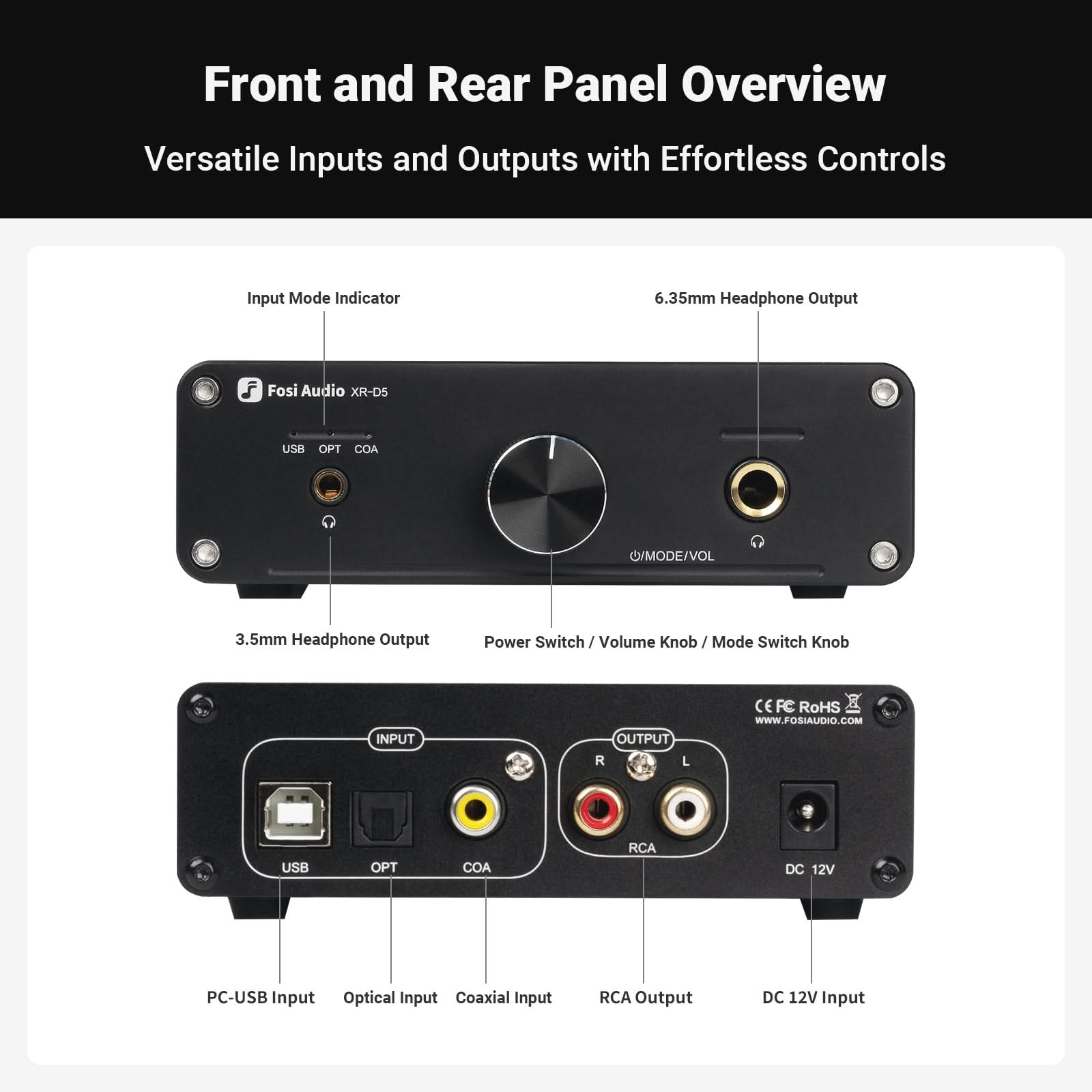

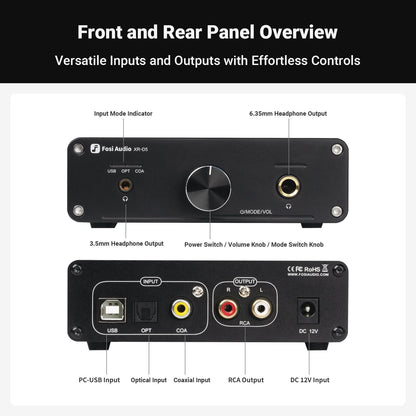

Rich Interface and Flexible Adaptation: Supports 3.5mm single-ended, 6.35mm dual outputs, as well as optical and USB inputs to meet the connection needs of different devices and experience seamless HD audio transmission.
-
Multi-functional operation: Integrated knob design, easy to adjust the volume and input mode, to enhance the convenience of use, to meet the diversified audio needs.
- Service Guarantee: We offer a 24-month warranty and friendly customer service
Specifications
| Specifications | Details |
|---|---|
| Model | XR-D5 |
| Input | PC-USB/Optical/Coaxial |
| Output | RCA/6.35mm headphone/3.5mm headphone |
| Headphone Impedance | 16Ω-300Ω |
| Digital to Analogue Converter | ESS9018K2M |
| SNR | 102dB |
| THD | ≤ 0.001% |
| Output Power | 360mw@32Ω |
| Frequency Response | 20HZ-20KHZ |
| Power Adapter | DC12V 1.5A |

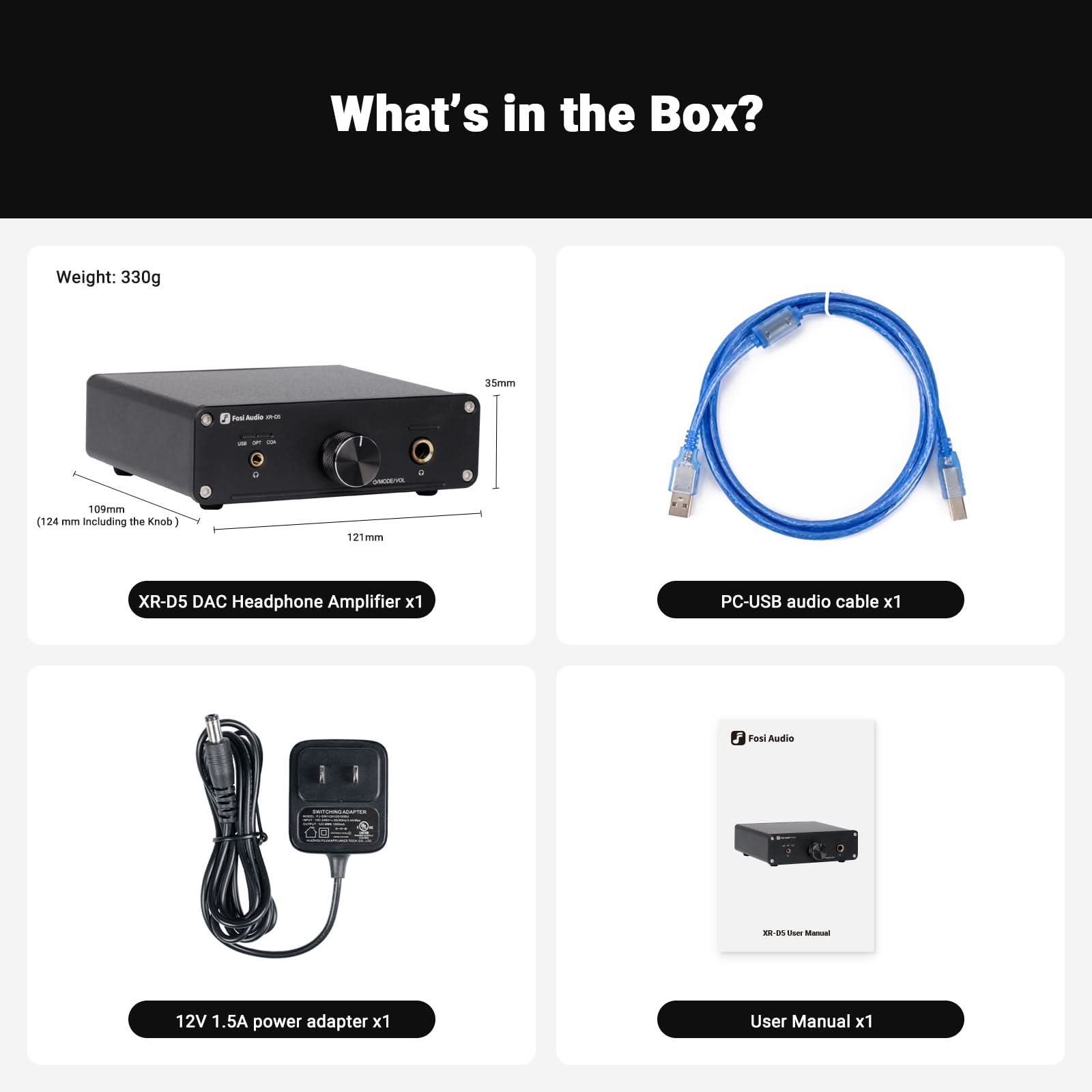

What‘s in the box？
| Item | Quantity |
|---|---|
| XR-D5 DAC Headphone Amplifier | x 1 |
| PC-USB audio cable | x 1 |
| 12V 1.5A power adapter | x 1 |
| User’s Manual | x 1 |
Specifications
Power Input
AC: 115V / 230V
Note:
115V setting supports 100–120V input
230V setting supports 220–240V input
Power Output
DC 1: 12V / 15V (Rated Power: 20W)
DC 2: 12V / 5V (Rated Power: 15W)
USB: 5V / 1A (Rated Power: 5W)
Operating Temperature
-20 ~ 40°C (-4°F ~ 104°F)
Temperature Rise Test
Temperature rise of 25°C (77°F) at full load
What‘s in the box？
- Fosi Audio PSU20*1
- 1.2m (47.2 in) DC-DC Power Cable*1
- 0.3m (11.8 in) DC-DC Power Cable*1
- User Manual*1
- AC Power Cord*1
