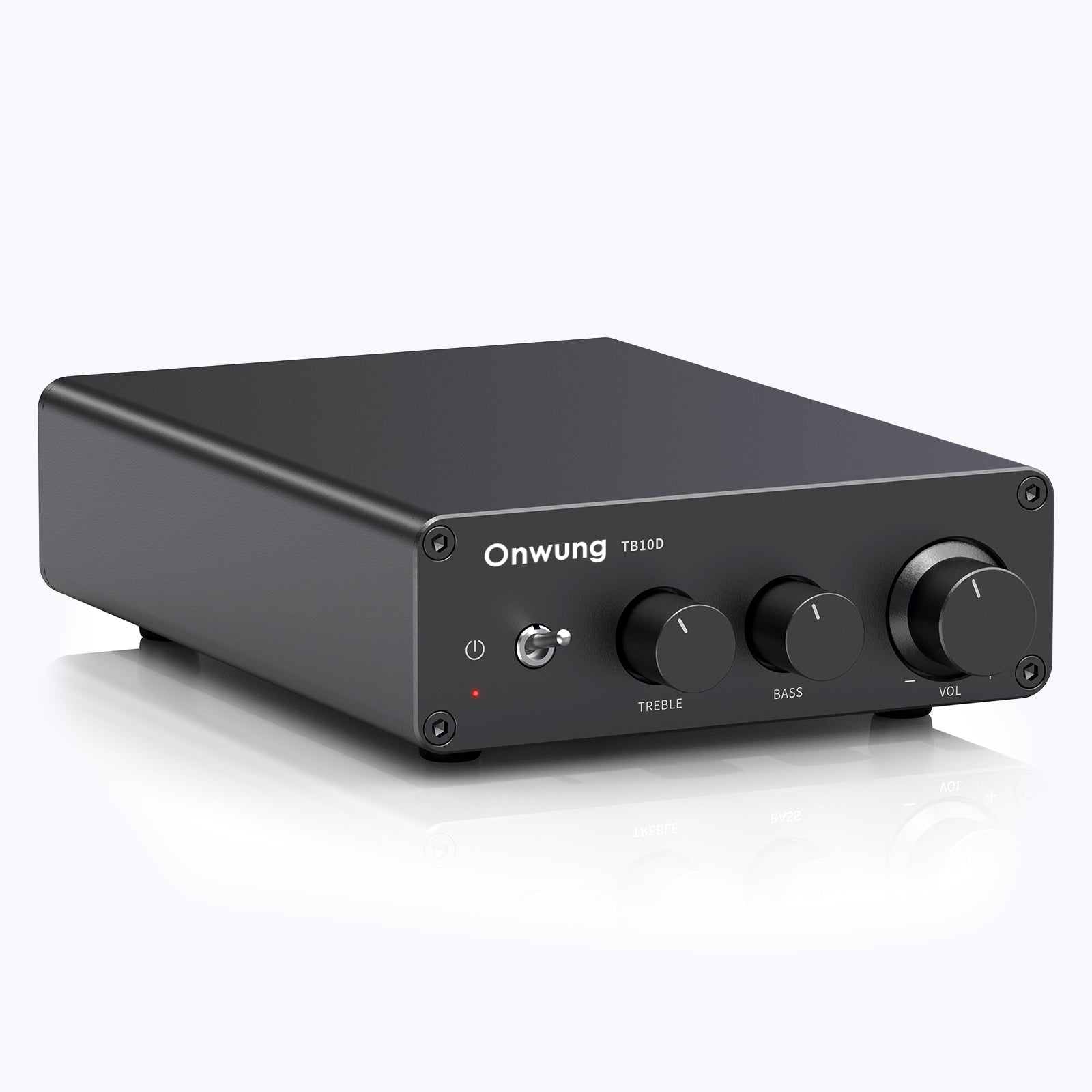

Onwung TB10D Stereo Audio Amplifier
Pairs well with
Fast, Free Shipping!
24 Months Warranty
30-Day Money-Back Guarantee
Lifetime Customer Support
Onwung TB10D Stereo Audio Amplifier
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We offer free worldwide shipping, except for certain regions such as Ukraine and Russia, where our services are currently unavailable.
-
Customer Support
WhatsApp: +8613716612254
support@fosiaudio.com
Mon-Fri: 3:00 AM - 3:00 PM PST -
FAQ’s
If you have any questions, please refer here: FAQs
80W Toroidal Transformer
Custom pure copper toroidal transformer with up to 100W peak output ensures stable power delivery, even with three devices connected.
Nippon Chemi-Con Capacitors
Premium capacitors help minimize ripple and noise, with ripple as low as 0.1mV.
High-Reliability Rectifier
A GBU806 rectifier bridge rated at 600V/8A ensures fast, stable AC-to-DC power conversion.
4-Core Regulation
Powered by three LM1085IT and one ST78M05 linear regulators from Texas Instruments.
Product details
Description
-
If you want to play your favorite songs entertainingly, a mini stereo amplifier is the best way to go. Fosi Audio TB10D is an analog input(RCA) Class-D audio amplifier that easy to install to build your home audio sound system.
-

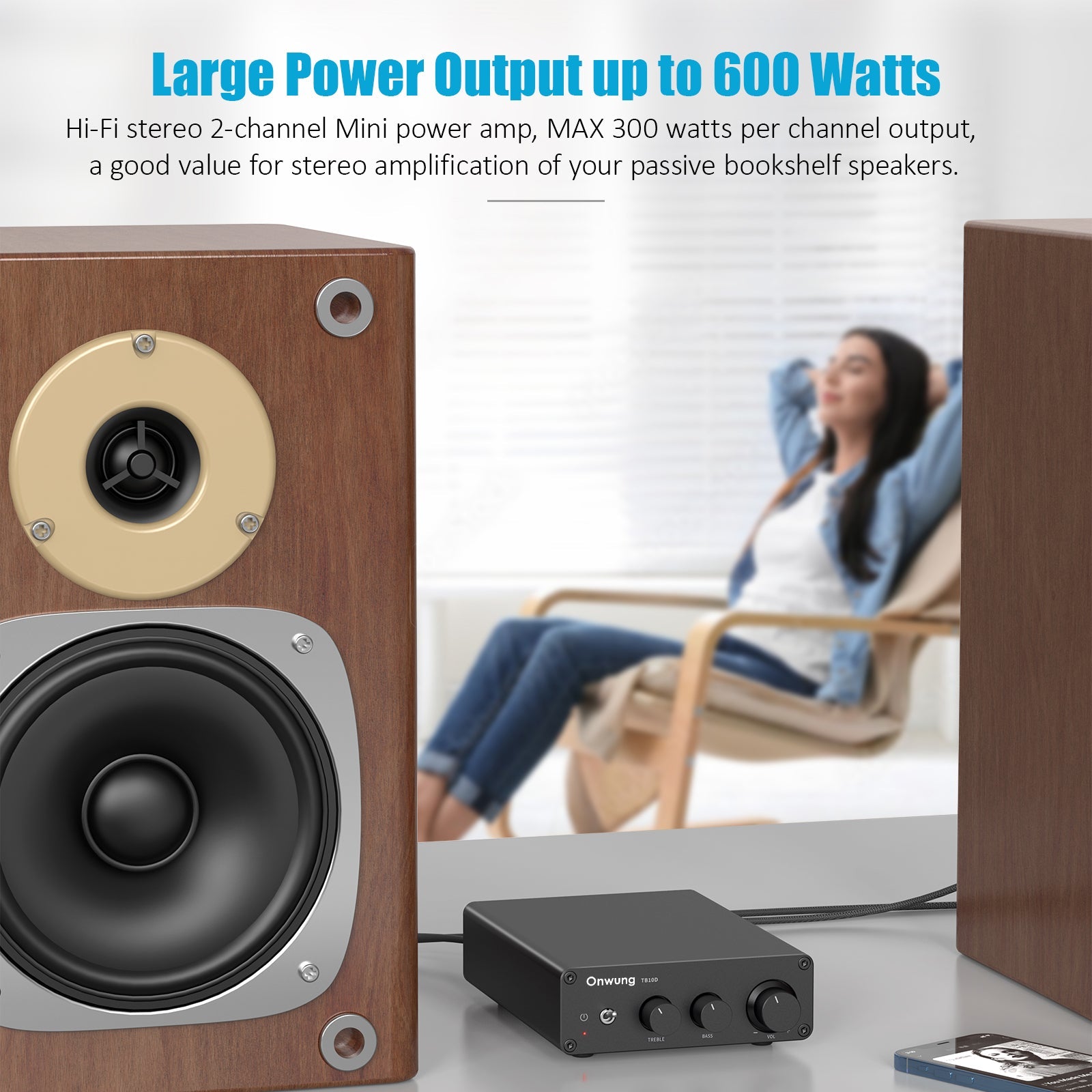

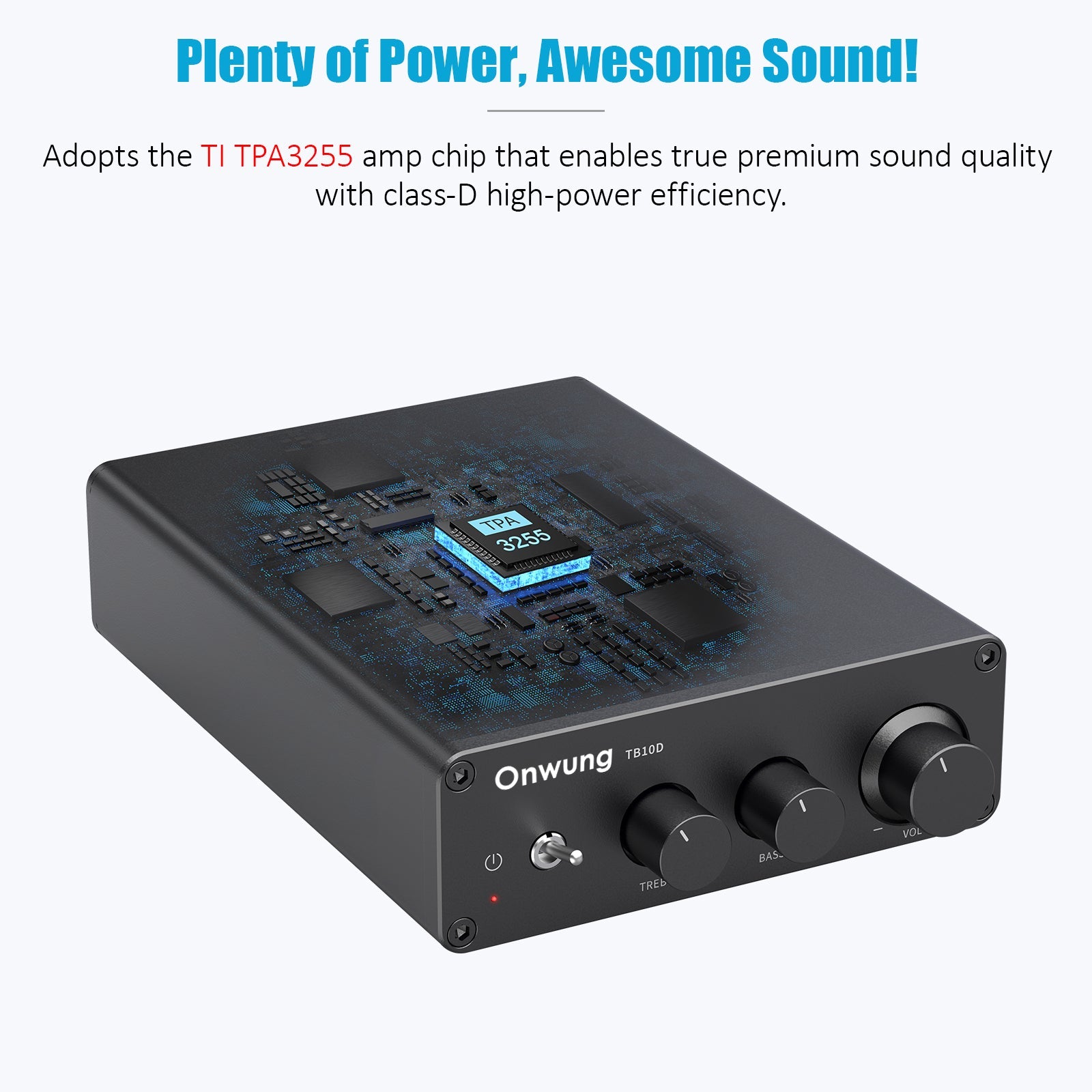

MAX Power Output up to 600Watts. TB10D adopts TI TPA3255 high-performance Class-D power amplifier chip enabling true premium sound quality. TPA3255 features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 300 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load.
-

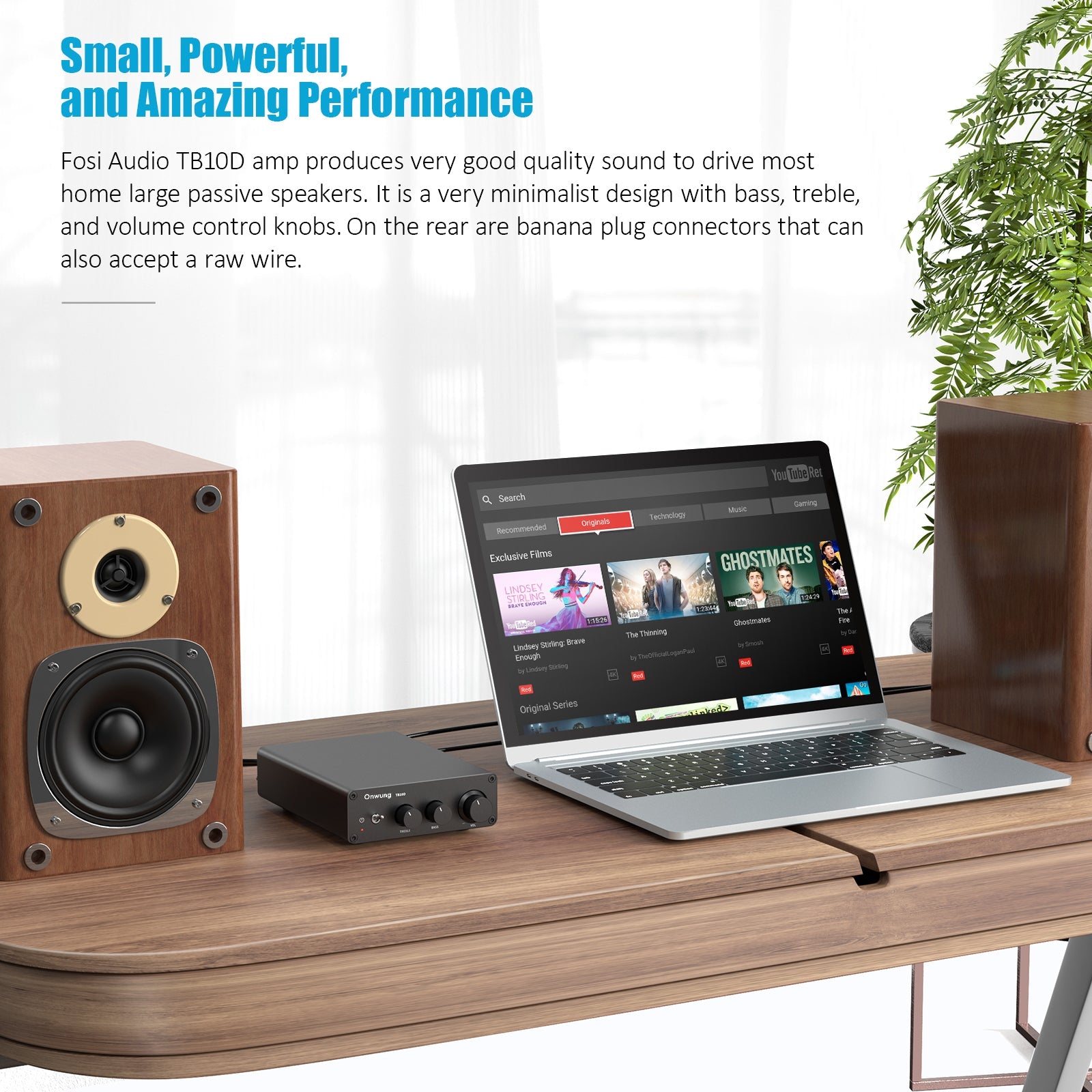

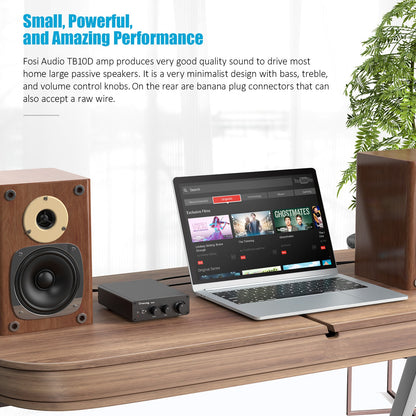

The high-efficient 2.0CH 300Wx2 desktop power amplifier can drive almost home large passive bookshelf speakers ensuring top-notch sound quality and is compatible with most sound equipment such as computers, DVDs, CD players, PC, laptops, TV, etc.
-
What you Get: TB10D amplifier x1, User Manual x1, 32V/5A Power Adapter x1(Note: You need a more powerful power supply to get the MAX 300W x2 power output, such as 48V/10A. The plug of the power adapter will match the country of your delivery address), AC Cord x1, 24-month worry-free warranty, and friendly customer service.
Specifications
| Specifications | Details |
|---|---|
| Model | TB10D |
| Output Power | 300Wx2 @4Ω |
| Terminating Impedance | 2-8Ω |
| Input Mode | RCA |
| Output Mode | Passive Speakers |
| Frequency Range | 20Hz - 40kHz (±2dB) |
| Input Sensitivity | ≤ 600mV |
| THD | ≤ 0.3% |
| SNR | ≥ 90dB |
| Chip Set | TPA3255 |
| DC Input Range | DC18V -48V |
| Device Weight | 1.05kg |
| Power Supply | 32V 5A |
What‘s in the box？
| Item | Quantity |
|---|---|
| TB10D | x 1 |
| AC Cord | x 1 |
| 32V 5A Power Adapter | x 1 |
