80W Toroidal Transformer

Custom pure copper toroidal transformer with up to 100W peak output ensures stable power delivery, even with three devices connected.

Nippon Chemi-Con Capacitors

Premium capacitors help minimize ripple and noise, with ripple as low as 0.1mV.

High-Reliability Rectifier

A GBU806 rectifier bridge rated at 600V/8A ensures fast, stable AC-to-DC power conversion.

4-Core Regulation

Powered by three LM1085IT and one ST78M05 linear regulators from Texas Instruments.

Product details

Description
  • Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use, small size, good looks, simple functionality, and excellent sound quality;

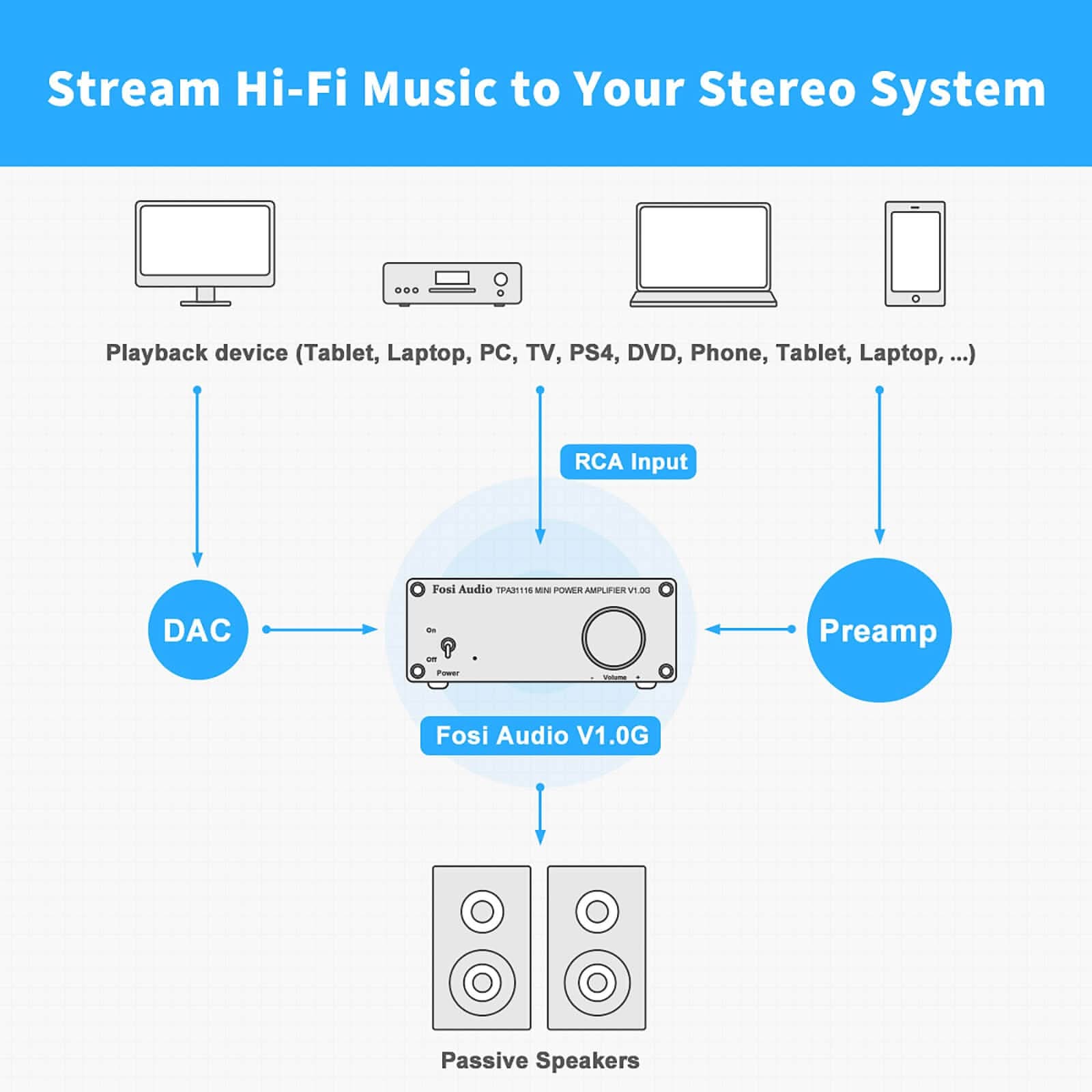

  • Best for bookshelf/computer/desktop/speakers in your room, connect to your Phone/MP3 player/DC/TV/Echo Dot as input, 50W X 2(4 ohms, 20 Hz - 20 kHz, 0.04% THD) can drive 2Ohm - 8Ohm speakers;

  • Home Hi-Fi integrated amplifier, Exclusively designed for the customers who pursue HiFi sound; Ship with power adapter and power cord, you can use directly;

  • Simple compact design but practical and powerful, Adopt TI TPA3116D2 chip to get clear and clarity sound, no audible noise, dead silent when nothing is playing through it;

  • Aluminum shell and Aluminum knob to sure high quality come to a 19V power supply that can fit with the amplifier well. 24-month warranty, you can return the item if you have any problems;

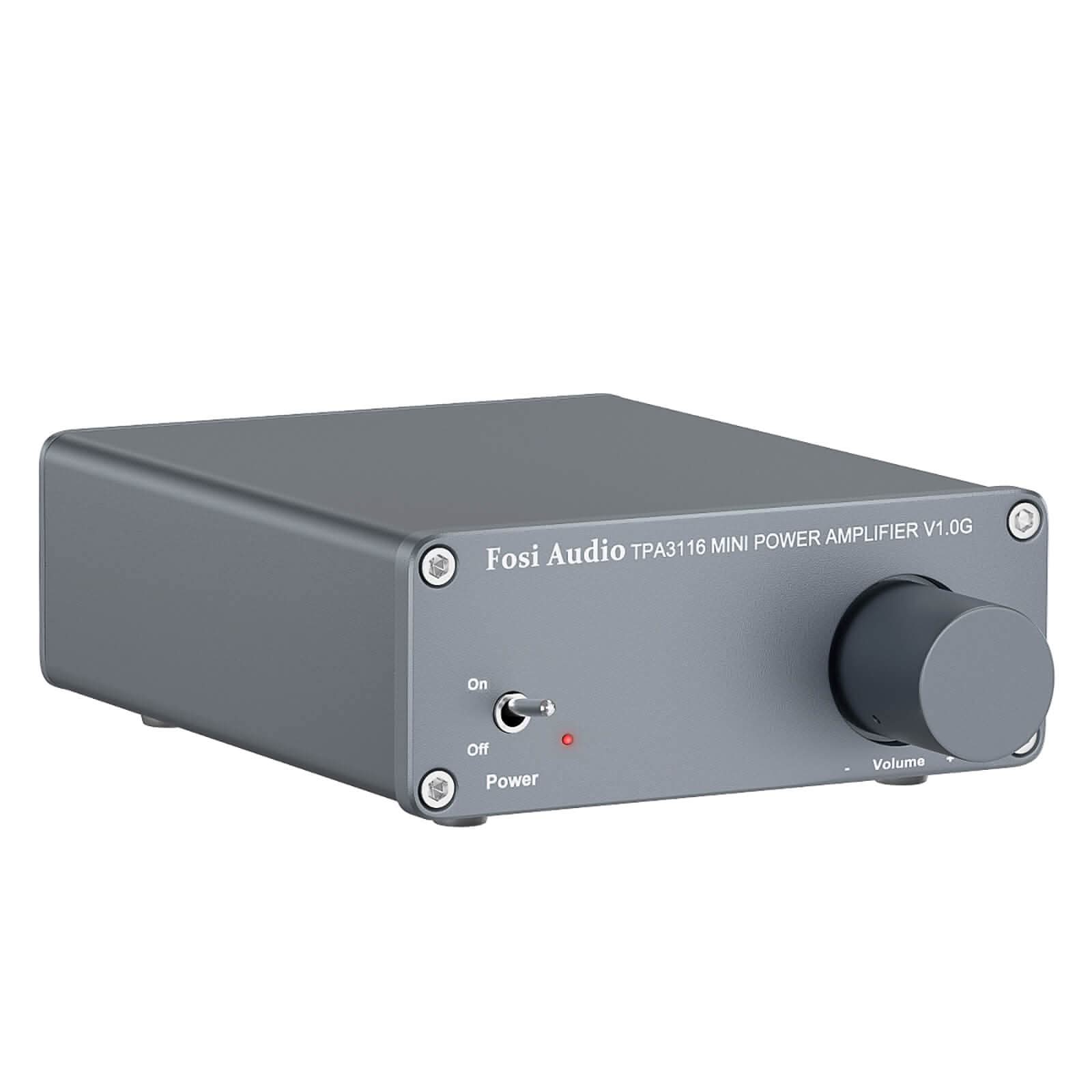

Fosi Audio V1.0G 2 Channel Stereo Audio Class D Amplifier Mini Hi-Fi Professional Digital Amp for Home Speakers 50W x 2
Fosi Audio V1.0G 2 Channel Stereo Audio Class D Amplifier Mini Hi-Fi Professional Digital Amp for Home Speakers 50W x 2



Specifications

Specifications Details
Model V1.0G
Chip Set TPA3116
Output Power 50W x2@4Ω
Terminating Impedance 2Ω-8Ω
Input Mode RCA
Output Mode Passive Speakers
Frequency Range 20Hz - 20kHz (±1dB)
THD ≤ 0.04%
SNR ≥ 98dB
Input Sensitivity ≤ 280mV
Device Dimension 4.13 x 3.54 x 1.38 inches
DC Input Range 12-24V
Power Supply 19V 4.74A

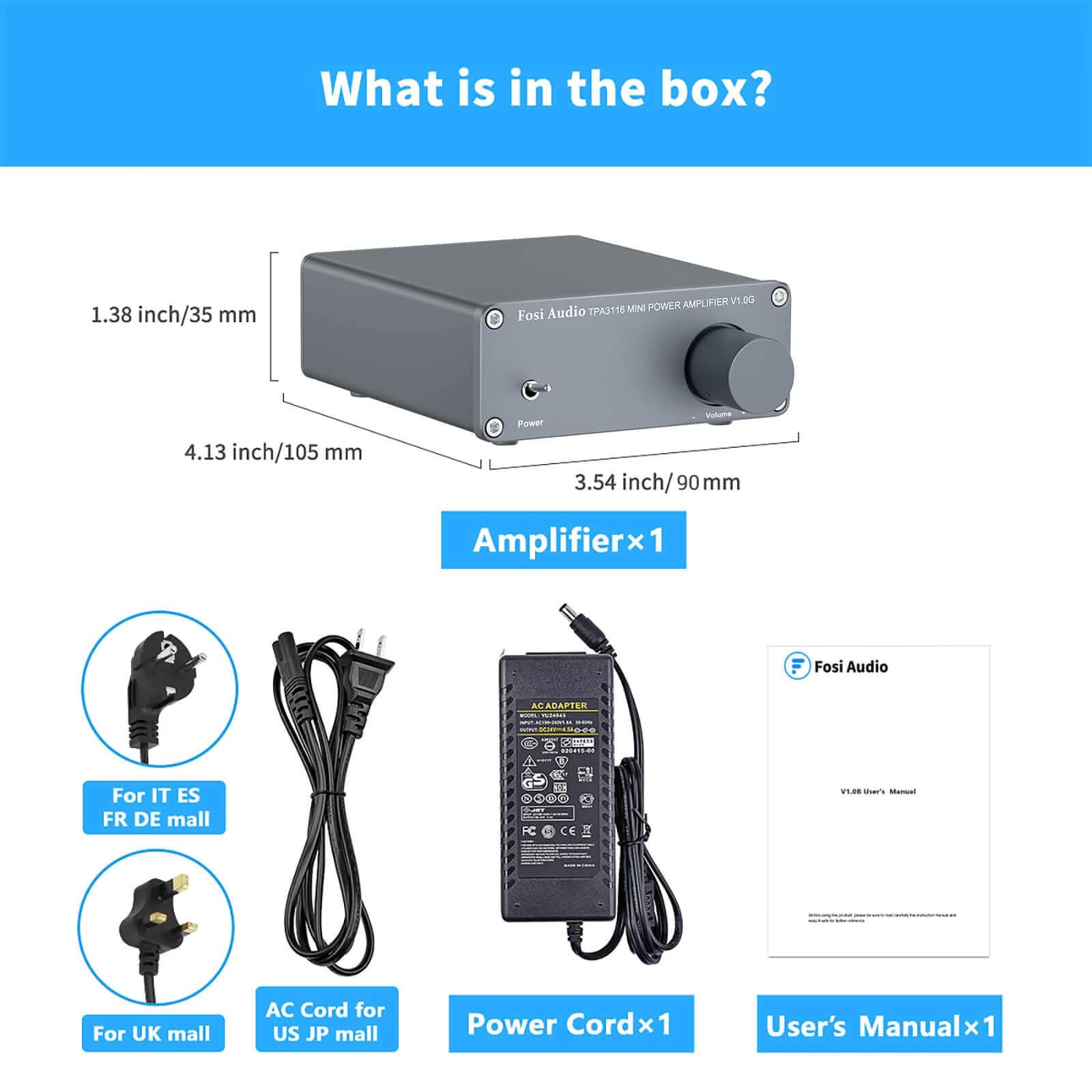

What‘s in the box?

Item Quantity
Fosi Audio V1.0G Amplifier x 1
19V 4.74A Power Adapter x 1
User’s Manual x 1



Video

Compare with similar items

Specifications

Power Input
AC: 115V / 230V
Note:
115V setting supports 100–120V input
230V setting supports 220–240V input
Power Output
DC 1: 12V / 15V (Rated Power: 20W)
DC 2: 12V / 5V (Rated Power: 15W)
USB: 5V / 1A (Rated Power: 5W)
Operating Temperature
-20 ~ 40°C (-4°F ~ 104°F)
Temperature Rise Test
Temperature rise of 25°C (77°F) at full load

What‘s in the box?
  • Fosi Audio PSU20*1
  • 1.2m (47.2 in) DC-DC Power Cable*1
  • 0.3m (11.8 in) DC-DC Power Cable*1
  • User Manual*1
  • AC Power Cord*1
