Product details
-

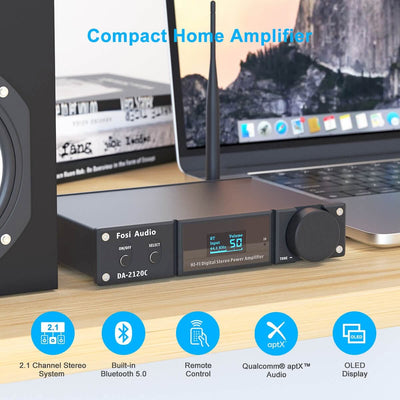

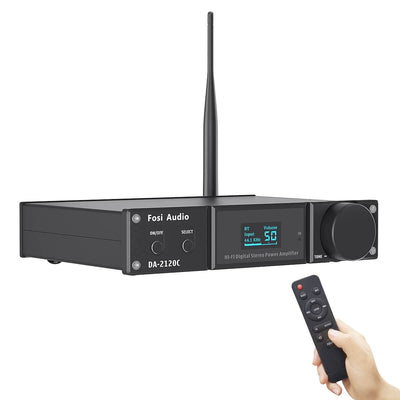

2.1 CH Wireless DAC Hifi Amplifier with EQ Control. MAX Power Output up to 120Watts x2@4ohm. DA2120C can drive most home bookshelf/desktop/outdoor(passive) speakers and powered subwoofers, offering low distortion and acoustically accurate audio reproduction. The bright digital LED display lets you see the settings you change easily and remote control for hassle-free adjust the inputs mode/volume/bass/treble.
-
DA2120C high-performance integrated stereo digital amplifier adopts Texas Instruments TAS5352A chip, designed to drive a 4-Ω bridge-tied load (BTL) at up to 120 W per channel with low harmonic distortion, low integrated noise, and low idle current. The TAS5352A has a complete protection system integrated into the chip, safeguarding the device against a wide range of fault conditions that could damage the system.
-

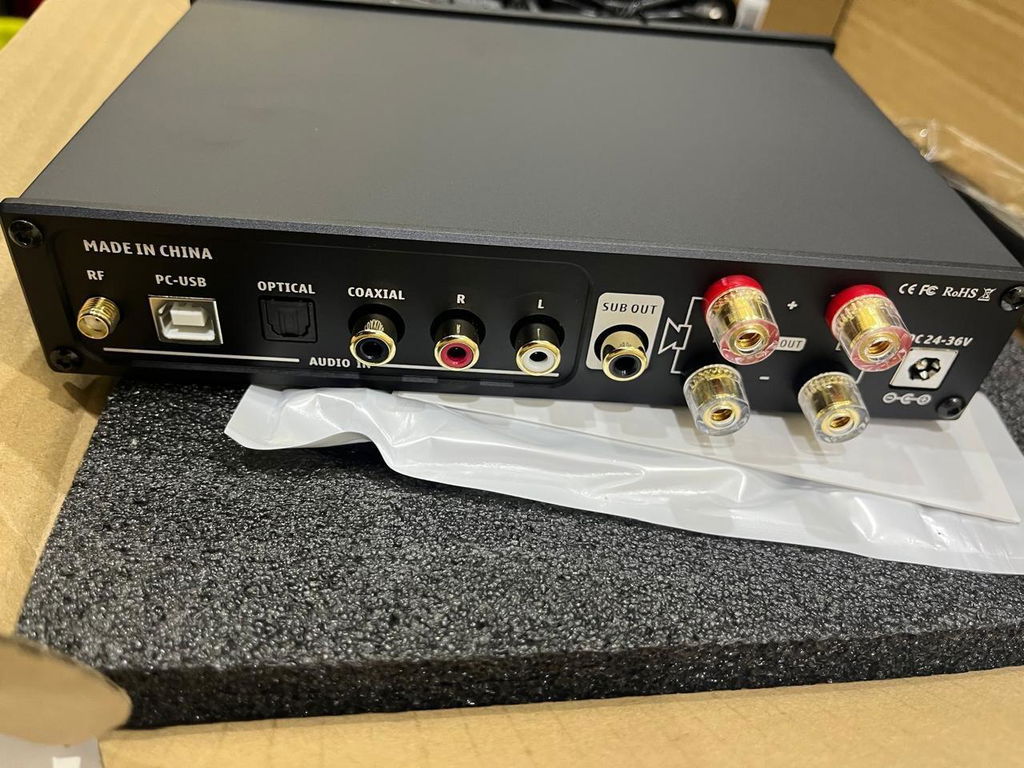

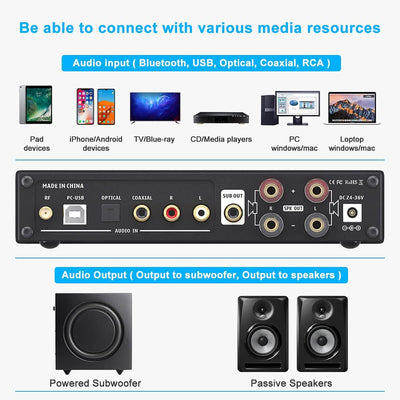

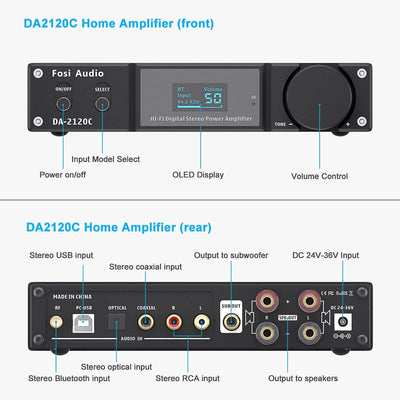

2-in-1 High-Performance DAC Power Amplifier with Multiple Input Modes. DA2120C installed in a quality aluminum enclosure supports Bluetooth/RCA/PC-USB/Coaxial/Optical Input, easy installation to build a stereo sound system.
-
DA2120C Bluetooth 5.0 amplifier delivers sound in sync, so you can enjoy the freedom of wireless and high-fidelity streaming music. It reduces delay and improves the end-to-end speed of the audio transmission, resulting in high-quality, synchronized sound, so you never miss a beat. With a 6dBi high gain antenna for long-range streaming up to 65 ft(20m).
-
What You Get: DA2120C stereo amplifier x1, Bluetooth antenna x1, 32V/5A power supply x1, remote control x1, PC-USB Cable x1, Optical Cable x1, user manual x1, our worry-free 24-month warranty, and friendly customer service.
Specifications
| Specifications | Details |
|---|---|
| Model | DA2120C |
| Output Power | 2 × 125W at 10% THD+N Into 4 Ω 2 × 100W at 10% THD+N Into 6 Ω 2 × 80W at 10% THD+N Into 8 Ω |
| Frequency Range | 20Hz - 20kHz (±1 dB) |
| Bass frequency | 20Hz-200Hz |
| THD | ≤ 0.01% |
| SNR | ≥ 105dB |
| USB Chip | Cmedia CM6642 SUPPORT 24bit/192Khz |
| Amplifier Chip | American TI TAS5352A |
| Bluetooth Chip | Qualcomm QCC3031 Bluetooth 5.0 chip supports aptX, aptX-HD, SBC, AAC |
| DAC Chip | American Cirrus CS8422 chip USB, coaxial optical fiber Supported sampling rate 24bit/192Khz |
| Device Dimension | L180*W130*H38mm (7*5*1.5in) |
| System Supported | XP/W7/W8/W10/MAC/Linux |
| Power Supply | 32V 5A |

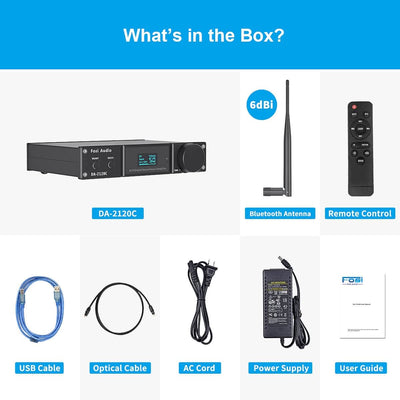

What‘s in the box？
| Item | Quantity |
|---|---|
| DA2120C Amplifier | x 1 |
| 32V 5A Power Supply | x 1 |
| Remote Control | x 1 |
| USB Cable | x 1 |
| Optical Cable | x 1 |
| AC Cord | x 1 |
| User’s Manual | x 1 |
You can also view other models:
DA2120A+24V Bluetooth Amplifier 2CH 50WX2
DA2120B+24V Bluetooth Amplifier 2CH 100W x2
DA2120D+24V Bluetooth Amplifier 2.1CH 100W x2
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
A Great amplifier with great sound quality
Connect with Elac debut 2
I am really happy with Fosi products
Happy customer
My second fosi audio product
Greetings from Qatar

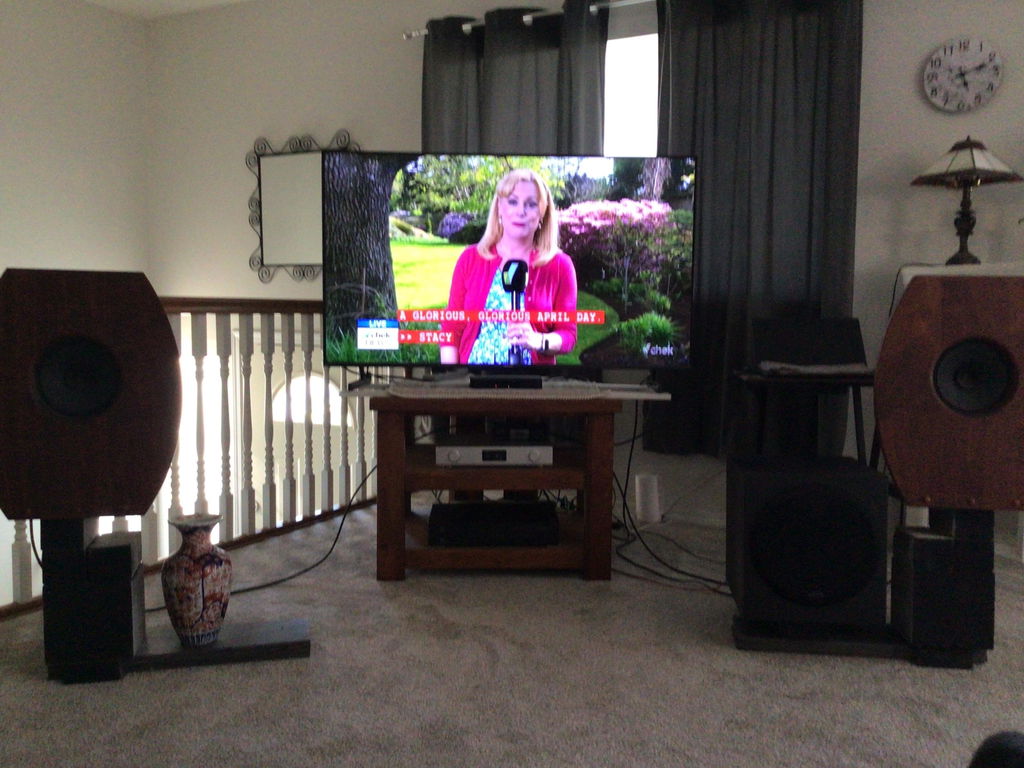

I use this unit with a $2000 DAC through AUX RCA inputs a powered subwoofer and multi thousand dollar speakers
The sound is dynamic and detailed
You have the ability to voice your subjective preferred sound via bass and treble controls with the added bonus of 5 equalizer settings 5 stars
?? it has definition and dynamic slam rivals many $1000 offerings
A bit underpowered for what I was expecting. I basically need to run at 90-100% volume to get enough to fill the room. This is more ideal for small room and background music.
The DA2120C is one of my first Fossey amplifiers.
A complete amplifier with DAC and Display and remote with optical and coaxial inputs and a subwoofer output. All in one amplifier.
At one time I suggested to Fosey to make the same amplifier with improved characteristics as the PRO model.
I still think that it would be a real hit because it is an exceptional amplifier and visually the most beautiful amplifier of all the models.
With the reviews that would follow, it would really be a great success and many people would be interested in having such an amplifier.
Prima versterker!👍
Le délai d'expédition de FOSI est assez long et on ne vous donne aucune nouvelles si vous ne réclamez pas.
Concernant le matériel, j'apprécie le format compact. L'alimentation externe n'est pas forcément très pratique (encore un boitier en plus !) mais cela permet justement cette compacité sur un meuble ou un bureau.
Visiblement FOSI ignore l'existence de la musique classique puisque qu'il y a des pré-réglages intégrés pour plusieurs autres styles de musique mais pas pour le classique. On aurait donc aimé un vrai égaliseur et un réglage de balance sur un appareil de ce prix.
Pour ce qui est de la qualité sonore c'est assez étrange. J'utilise l'entrée optique. Certains morceaux passent très bien et d'autres semblent un peu confus avec des instruments qui ne sont pas très bien séparés. Mais c'est peut-être dû à mes enceinte vieillissantes qui ne s'accordent pas très bien avec ce matériel moderne entièrement numérique ...
Perfect 👌 👍 🥰 💞
Excelente gracias por tu atenci��n al cliente. Excelente producto bien compacto y claro.
Great product. Easy installation. Highly recommend. (You can use it with creative Bluetooth adapter also)
This is my 2nd DA2120C. The 2nd room is a little larger so near max volume is req. My passive sub woofer works well via the Fosi.
Thank you ��
Really happy with my purchase. Very good quality for the price. Exactly what I needed.
easy, all features (input/output), small and nice power.
Compact,reliable and excellent sound guality. The Fosi 2120C easily drives my speakers and looks great too.Clean,detailed audio, stabile Bluetooth, and solid build. Highly rekommend the Fosi 2120C!
This is the second time I've purchased this exact amp; first for my gym and secondly for my gazebo. The first one is paired with Kicker outdoor speakers and a 12" Polk subwoofer for tremendous sound quality and instrument's distinction. This new amp is paired with the same speakers and a DaytonAudio 10" subwoofer with a unique design for my particular need. The amp powers my systems beautifully with a robust quality that satisfies this audiophile's demands!
I bought this to place in our office with some Klipsch RF-42ii - the sound is great! The DAC is better than what I had, which has brought great life to my music over Bluetooth. The remote is a handy feature for switching between BT and my XBox via Optical. The EQ takes a bit to dial in, but once I got it set up - the setup has been a welcome change in our office workspace.
Good product, good looking
Sound is ok, missing a treble and base refinement, those are little filtered or dial down. Also missing a passive subwoofer output.
I needed an amp with bluetooth and USB input. I also wanted to get a decent power supply (my previous one came with a weak power supply which didn't give me the sound punch I desired). This Fosi Audio DA2120C met all my needs. I do wish it came with a slightly longer USB-B to USB-A cable.
Pair this device with a pair of quality bookshelf speakers on stands, and a subwoofer. You've got a setup that beats just about all the popular soundbars out there.
It's so small it fits under the TV on OEM feet. Feels surprisingly heavy for it's size, despite the PSU being external. Binding posts took full size banana plugs with ease. Has every connection possible to cover most TV outputs.
Deducted one star because you will see sparks if connect the PSU while it's plugged in. TBF, every Class D micro amp I've owned does this too.
I like this a lot. I have it hooked up to my TV. Unfortunately, the only way to hook it up and only have to use one remote control (who wants more than one if they don��t need to?) is to have the TV set to "headphones" and then run it through the amp to the speakers. An HDMI jack would have been useful. But otherwise it��s really great, and good value for the price.
Fosi Audio DA2120C Bluetooth 2.1 Channel Amplifier Subwoofer DAC with Remote Control for Speakers With 32V 5A Power Supply
very good sound, powerfull
This is my first budget Amp I bought and I am glad that I made the decision. I am almost satisfied, except I don't get full spectrum of 24bit/192Khz audio sampling rate for all inputs. Only getting this in PC USB input, others such as RCA and Optical, I am only getting maximum of 48Khz. Other than this drawback, rest of the things are good. For music listening I use Hard Rock EQ, which is suitable for my needs. I also connected sub out, and it works fine.
