Product details

  • Fosi Audio BL20A is a powerful Bluetooth 5.0 HiFi stereo amplifier with AUX pre-output, which can be used as a pre-amplifier. Design Treble & Bass control and remote control to meet your more needs.

  • The BL20A power amplifier supports AUX/U-Disk/Bluetooth input, suitable for most home passive speakers. Using two low-distortion TPA3116 high-performance chips to display ultra-high-definition sound quality.

  • Let's join the audiophile’s music journey with Fosi Audio BL20A Amp!

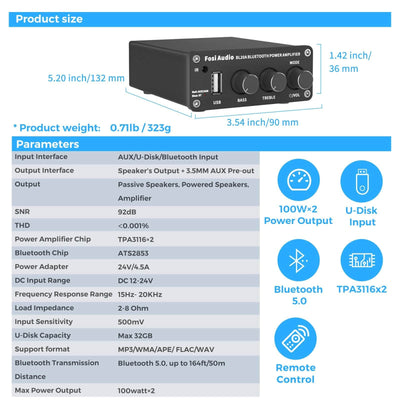

Specifications

Specifications Details
Model BL20A
Chip Set TPA3116*2
Output Power 100W x 2
Terminating Impedance 2-8Ω
Input Mode Bluetooth, AUX, U-disk

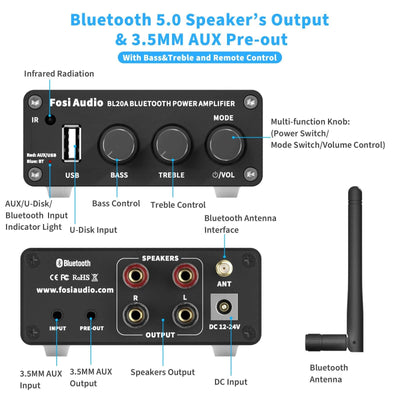

Output Mode Speaker’s Output + 3.5MM AUX Pre-out
Frequency Range 15Hz-20kHz (±1 dB)
THD ≤0.001%
SNR ≥92dB
Input Sensitivity ≤500mV
Support Format MP3/WMA/APE/ FLAC/WAV
U-Disk Capacity MAX 32GB
Bluetooth Transmission Distance Up to 164ft/50m
Device Dimension 3.54×4.72×1.18 inches
Product Weight 0.71lb/323g
DC Input Range 12-24V
Power Supply 24V 4.5A

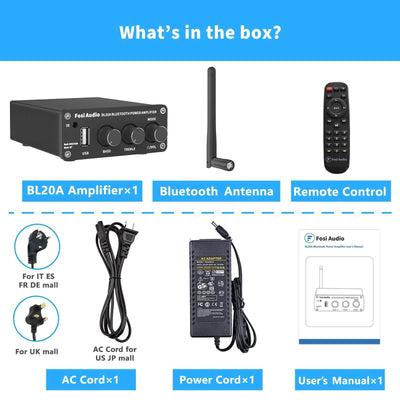

What‘s in the box?

Item Quantity
BL20A Bluetooth Amplifier x 1
Remote Control x 1
24V 4.5A Power Adapter x 1
AC Cord x 1
User’s Manual x 1

We will send the correct plug type according to destination Country



You can also check our BL20C 160W x2 Bluetooth 2.1 CH Amplifier.

FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us
