Product details
-
Easy to set up, no special software, app, or driver to install, a true plug-and-play digital audio adapter.
-

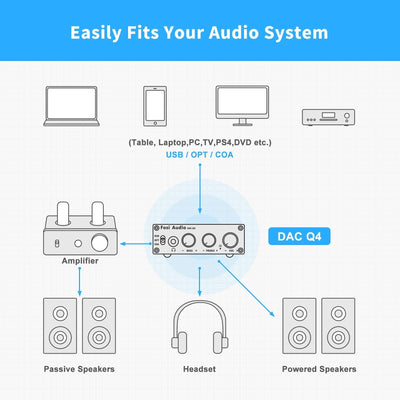

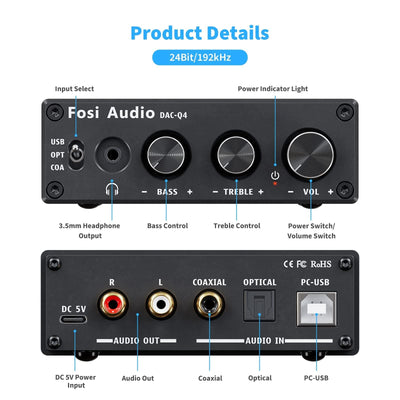

With USB, optical and coaxial S/PDIF inputs can fit with most home audio systems, and RCA output can be connected to an amplifier or powered speakers on your desktop;
Built-in Hi-Fi headphone amp chip can drive most 16ohm to 200ohm headphones. -
160mW RMS(32 ohms, 20 Hz - 20 kHz, 0.01% THD), with bass and treble control, can be used as preamp or volume controller for your PC/MAC/Computer.
-
Mini Compact D/A converter, stream bit-perfect 24bit/192KHz HD with low jitter, with output, protect the circuit, safe for your expensive audio system.
Specifications
| Specifications | Details |
|---|---|
| Model | Q4 |
| PC-USB supports input sampling rate | 24Bit/96kHz |
| High and low sound adjustment range | ±6dB |
| Fiber/coaxial support input sampling rate | 24Bit/192kHz |
| Frequency response | 20Hz-20kHz (±3dB) |
| PC-USB support operating system | XP/W7/W8/W10/MAC/Linux |
| Distortion | 0.01% |
| SNR | ≥105dB |
| Amp output maximum power | 100mW 32Ω load |
| Headphone matching impedance | 16Ω-200Ω |
| Working voltage | DC5V |
| RCA output level | 2.3V |
| Size (L*W*H) | 73.5*98*33MM (without knobs and terminals) |

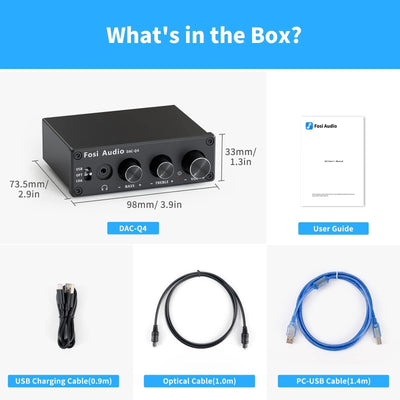

Package Include
| Item | Quantity |
|---|---|
| Fosi Audio DAC-Q4 | x 1 |
| 5V USB Power Supply Cable | x 1 |
| PC-USB Cable | x 1 |
| Optical Cable | x 1 |
| User’s Manual | x 1 |
Compare with similar items
Q5 Mini Headphone Amplifier
Q6 USB HiFi DAC Headphone Amplifier
Q7 Bluetooth 5.0 Hi-Fi Amp
Q5 Mini Headphone Amplifier
Q6 USB HiFi DAC Headphone Amplifier
Q7 Bluetooth 5.0 Hi-Fi Amp
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
